All-in-one Flow pressure and Turbidity Measurement Device with secure electronic data collection and cloud storage.

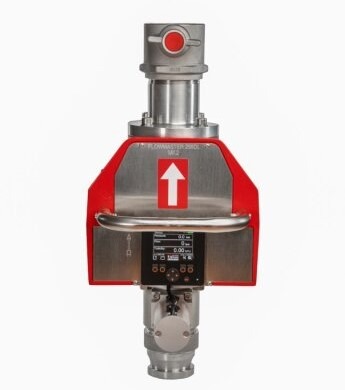

The Flowmaster 250DL MK2 Turbidity Flow Meter provides the most reliable and accurate flow, turbidity and pressure measurements. Ideal for producing verifiable and traceable data for your reports.
Measures flow rates to 50 lps, turbidity to 40 NTU, pressure to 25 bar. No moving parts which in turn means that measurements are not affected by debris in the water stream.
Specification
Internal Data Logger: Record Up to 12 Hours of Flow and Pressure Readings
Battery power supply: rechargeable Li-Ion battery, 10 hours operation.
12 V DC, 2.6 Ah, separate Li-Ion charger included with delivery.
Optional External Battery Bank to Extend Operating Times
Working temperature: -10 to +50°C.
Connections: BS Instantaneous Male Inlet, BS Instantaneous Female Outlet
Dimensions: 210 mm height, 240 mm width, 390 mm depth.
Weight: 12.5 kg Housing: Aluminium.
Flow Meter:
Type: Electromagnetic.
Operating range: 30-3000 LPM
Accuracy: 30 to 750 L/min ± 15 L/min, >750 L/min ±2%.
Standard functions: Display of current flow rate, display of volume.
Display Type: 320×240 Backlit Graphic Color Display
Pressure Transducer: Operating Range: 0 – 25 bar / 0-350PSI (±1%)
Click here for more information on Flowquip’s Electromagnetic flow meters. Should you wish to hire an Electromagnetic flow meter, this can be done through our sister company Flowhire Ltd.
