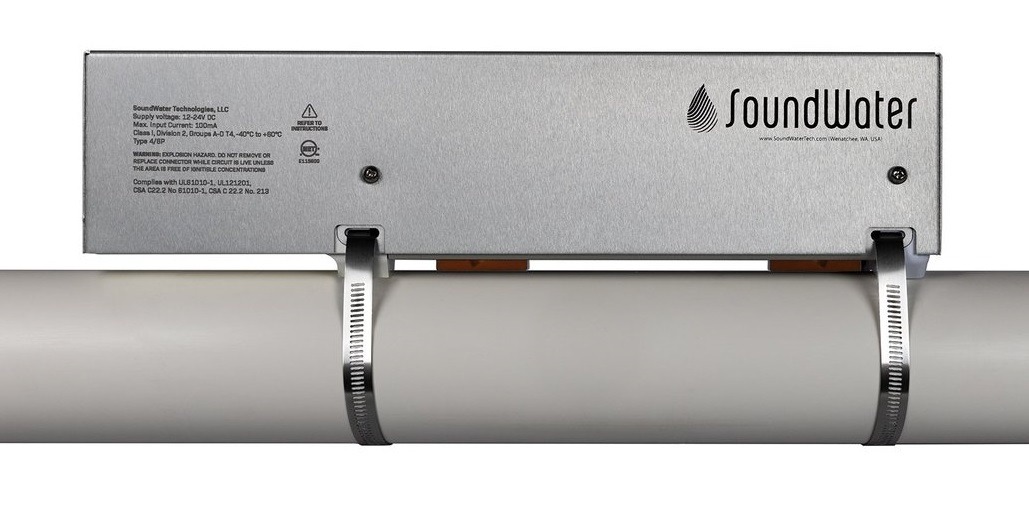

Cypress is a compact ultrasonic flowmeter with external power and industrial communications designed for long-term flow monitoring and certified for use in C1D2 hazardous areas. It installs on the outside of your pipe—and senses flow through the pipe wall. The Cypress Flowmeter connects with your mobile device or to the SoundWater Flow Computer for displaying measurements. Whether you’re using your mobile device or the Flow Computer, the setup is easy to follow. Quick, simple installation—5 minutes from start to finish.
Installation Installs on pipe from 1″ to 96″ nominal diameter depending on hardware selection 15 pipe diameters upstream, 5 diameters downstream for optimal performance (typical)
Flow Detection Range Bi-directional; 0 ft/s to 64 ft/s (0 m/s to 20 m/s)
Min. Wall Thickness -T420: 0.05″ -T410: 0.10″ -T405: 0.20″ -T403: 0.4″
Performance PIPE SIZE RANGE ACCURACY (% OF READING) REPEATABILITY 3″ to 96″ ±1.0% to 2.0% typical 0.5% 1″ to 2″ ±2.0% to 3.0% typical 0.5% *Under standard conditions, assuming fully developed and symmetrical flow profile (typically taken on a straight run of 15 diameters upstream and 5 diameters downstream; flow rate above 3 ft/s or 1m/s; non-aerated liquids). If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
Outputs CURRENT (4-20 mA) Current proportional to flow; user programmable. (OPTIONAL) PULSE NFET (NPN type) open drain output; frequency proportional to flow; user-programmable; Max 39,000 (Hz) MODBUS RTU RS485, user programmable port setting
Display – SoundWater Flow Computer (optional; wall mount display) SoundWater OrcasTM App (iOS or Android) connected wirelessly to Cypress with Bluetooth 4.0 (BT LE) Metric and English units; Rate, Total, Velocity, Sound Speed
Data Logger Store up to 365 days, 10,000 measurements, 50,000 datapoints.
